Lifting and Lashing Points

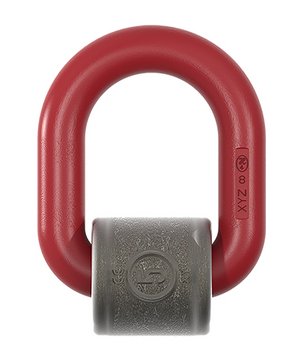

The weld-on lifting points TWN 0124 with spring are used for general lifting, moving and lashing of loads.
The lifting points are often welded onto machine frames, steel constructions, lifting beams and housings. The D-ring is being held in position by a spring.
The manufacturing and testing requirements comply with DIN EN 1677-1 and ISO 8539.
Trade Size | Article-No. | Working [lbs] | Tensioner under straight load [daN] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||||||
e* | f* | c | l | b | h | d | |||||||
1/4" | F35107 | 2.500 | 2.200 | 2.24 | 1.14 | 1.26 | 1.26 | 1.42 | 1.10 | 0.47 | 0.53 | ||
5/16" | F35110 | 4.500 | 4.000 | 2.64 | 1.34 | 1.50 | 1.50 | 1.65 | 1.30 | 0.55 | 1.01 | ||
3/8" | F35124 | 7.100 | 6.300 | 3.19 | 1.69 | 1.77 | 1.73 | 1.89 | 1.50 | 0.71 | 1.59 | ||
1/2" | F35139 | 12.000 | 10.600 | 4.61 | 2.60 | 2.36 | 2.36 | 2.60 | 2.13 | 0.94 | 4.25 | ||
5/8" | F35144 | 18.100 | 16.000 | 4.80 | 2.40 | 2.68 | 2.56 | 2.83 | 2.40 | 1.10 | 5.89 | ||
*E- and F-Dimension vertical to the welding level. | |||||||||||||
