Lifting and Lashing Points

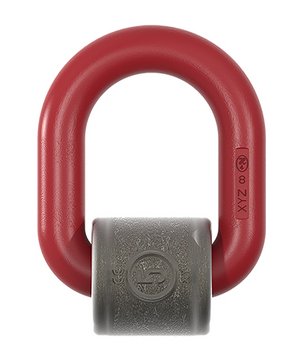

The weld-on lifting points TWN 0119A are used for universal lifting, moving and lashing of loads. The lifting points are often welded to machine frames, steel structures, lifting beams and housings.
The manufacturing and testing requirements are based on DIN EN 1677-1 and ISO 8539.
Trade Size | Article-No. | Working [lbs] | Tensioner under straight load [daN] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||||||
e* | f* | c | l | b | h | d | |||||||
1/4" | F35103A | 2,500 | 2,200 | 2.32 | 1.22 | 1.26 | 1.26 | 1.42 | 1.10 | 0.47 | 0.53 | ||
5/16" | F35113A | 4,500 | 4,000 | 2.72 | 1.42 | 1.50 | 1.50 | 1.65 | 1.30 | 0.55 | 1.01 | ||
3/8" | F35123A | 7,100 | 6,300 | 3.35 | 1.81 | 1.77 | 1.73 | 1.89 | 1.50 | 0.71 | 1.59 | ||
1/2" | F35133A | 12,000 | 10,600 | 4.72 | 2.72 | 2.36 | 2.36 | 2.60 | 2.01 | 0.94 | 4.25 | ||
5/8" | F35143A | 18,100 | 16,000 | 5.00 | 2.60 | 2.68 | 2.56 | 2.83 | 2.40 | 1.10 | 5.89 | ||
7/8" | F35163A | 34,200 | - | 7.01 | 3.86 | 3.78 | 4.29 | 4.72 | 3.15 | 1.54 | 17.84 | ||
1-1/4" | F35183 | 72,300 | - | 11.50 | 6.85 | 5.71 | 6.50 | 7.09 | 4.65 | 2.20 | 60.19 | ||
1-9/16" | F35193 | 110,200 | - | 14.61 | 8.78 | 7.32 | 8.27 | 9.06 | 5.71 | 2.83 | 132.28 | ||
*E- and F-Dimension vertical to the welding level. | |||||||||||||
