Lifting and Lashing Points

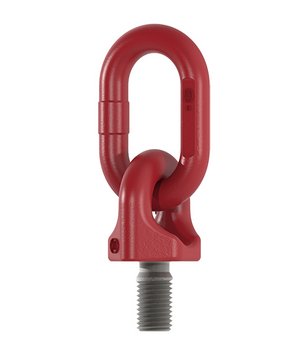

The screw-type lifting points TWN 0123 are predominantly used for the transportation of moulds, tools, dies, machine parts and steel constructions. The intermediate links allow an easy assembling with other lifting components.
The manufacturing and testing requirements comply with DIN EN 1677-1 and ISO 8539.
Screw Size dg [mm] | Article-No. | Working [lbs] | Thread Length lg [inch] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||||||
e | f | d | t | b | SW | a | |||||||
M16 | F34110 | 2,500 | 1.18 | 4.45 | 2.05 | 0.63 | 2.76 | 1.38 | 1.81 | 2.36 | 1.83 | ||
M16 | F34115 | 2,500 | 1.18 | 6.02 | 3.62 | 0.63 | 4.33 | 2.36 | 1.81 | 2.36 | 2.20 | ||
M20 | F34120 | 4,500 | 1.50 | 4.45 | 2.05 | 0.63 | 2.76 | 1.38 | 1.81 | 2.36 | 1.92 | ||
M20 | F34121 | 4,500 | 1.50 | 6.02 | 3.62 | 0.63 | 4.33 | 2.36 | 1.81 | 2.36 | 2.31 | ||
M24 | F34130 | 7,100 | 1.38 | 5.04 | 2.64 | 0.71 | 3.35 | 1.57 | 1.81 | 2.36 | 2.38 | ||
M24 | F34131 | 7,100 | 1.77 | 6.02 | 3.62 | 0.71 | 4.33 | 2.36 | 1.81 | 2.36 | 2.78 | ||
