Lifting and Lashing Points

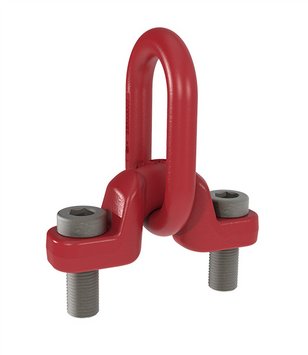

The screw-on lifting points TWN 0122 are predominantly used for the transportation of heavy moulds, tools, dies, machine elements and steel constructions. The intermediate links allow an easy assembling with other lifting components.
The manufacturing and testing requirements comply with DIN EN 1677-1 and ISO 8539.
Screw Size dg [mm] | Article-No. | Working [lbs] | Thread Length lg [inch] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||||||
e | f | a | b | l | d | h | t | c | SW | |||||||
M16 | F35070 | 7,100 | 0.98 | 4.41 | 2.24 | 3.54 | 1.57 | 5.12 | 0.71 | 2.17 | 3.35 | 1.50 | 0.47 | 3.24 | ||
M20 | F35075 | 12,000 | 1.42 | 5.87 | 3.15 | 4.53 | 1.97 | 6.50 | 0.87 | 2.72 | 4.53 | 1.77 | 0.55 | 5.95 | ||
M30 | F35080 | 18,100 | 1.97 | 7.20 | 3.66 | 5.91 | 2.56 | 8.35 | 1.02 | 3.50 | 5.51 | 2.17 | 0.87 | 13.10 | ||
M36 | F35095 | 34,200 | 2.09 | 8.54 | 4.13 | 6.89 | 3.15 | 10.04 | 1.42 | 4.41 | 6.30 | 2.83 | 1.06 | 24.43 | ||
M42 | F35098 | 47,700 | 2.64 | 10.31 | 5.20 | 7.87 | 3.94 | 11.61 | 1.77 | 5.12 | 7.87 | 3.54 | 1.26 | 44.29 | ||
M45 | F35101 | 55,100 | 2.64 | 10.31 | 5.20 | 7.87 | 3.94 | 11.61 | 1.77 | 5.12 | 7.87 | 3.54 | 1.26 | 45.30 | ||
M56 | F35102 | 72,300 | 3.46 | 13.23 | 7.60 | 9.06 | 4.33 | 12.99 | 1.89 | 5.63 | 10.63 | 3.94 | 1.42 | 69.67 | ||
M56 | F35285 | 79,400 | 3.46 | 13.23 | 7.60 | 9.06 | 4.33 | 12.99 | 1.89 | 5.63 | 10.63 | 3.94 | 1.42 | 69.67 | ||
