Lashing Products

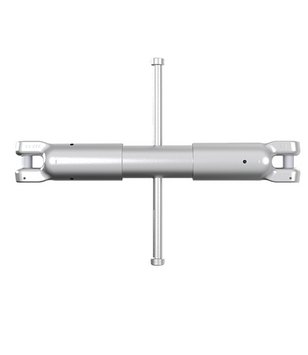

The Grade 80 toggle tensioners KH with clevis connection TWN 1450 with toggle are used as tensioning elements in lashing chains.
The toggle tensioners can also be used in chain slings for stepless adjustment of the strand lengths when lifting loads.
The manufacturing and testing requirements are based on the ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Working [lbs] | Norm. straight load [daN] | Tensioner under straight load [daN] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||
emax | emin | Lift | ||||||||
5/16" | F34179 | 2,00 | 1,800 | 4,000 | 13.58 | 10.63 | 2.95 | 4.63 | ||
3/8" | F34199 | 3,15 | 2,200 | 6,300 | 14.76 | 10.83 | 3.94 | 5.95 | ||
1/2" | F34189 | 5,30 | 2,600 | 10,000 | 18.11 | 12.99 | 5.12 | 8.82 | ||
