Lifting Products Grade 80

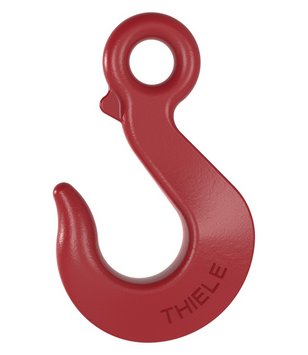

The Grade 80 eye sling hooks TWN 0855 are used to assemble chain slings. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320.
The manufacturing and testing requirements comply with the ASTM A952/A952M and DIN EN 1677-2.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||
e | d1 | g | h | c | d2 | ||||||
1-7/16" | F32266 | 88,200 | 15.28 | 2.83 | 4.29 | 4.06 | 3.07 | 1.75 | 69.45 | ||
1-9/16" | F32269 | 110,200 | 17.40 | 3.31 | 4.88 | 4.57 | 3.50 | 1.99 | 101.41 | ||
1-3/4" | F32267 | 138,900 | 19.45 | 3.54 | 5.43 | 5.12 | 3.90 | 2.20 | 138.89 | ||
2" | F32268 | 176,400 | 24.02 | 4.02 | 6.10 | 5.71 | 4.33 | 2.48 | 176.37 | ||
