Lifting Products Grade 80

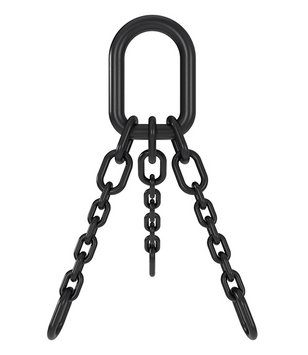

The magnet chain slings TWN 0601 are welded 3-leg chain slings with a D-link at the top and are used for a fixed connection to electro magnets and enable the lifting and transport of magnetic material, such as steel scrap.
Manufacturing and testing requirements are according to the ASTM A391/A391M.
Trade Size
| Article-No. | Working 0° < β ≤ 30° [lbs] | Working Length e [inch] | D-Link [inch] | Master-Link [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||
α = 90° | α = 60° | d1 | t1 | b1 | d2 | t2 | b2 | ||||||
5/8" | F08945 | 47,000 | 32.60 | 29.61 | 1.77 | 10.24 | 6.10 | 0.79 | 3.54 | 1.77 | 52.25 | ||
3/4" | F08946 | 73,500 | 37.01 | 33.43 | 2.01 | 10.24 | 6.10 | 0.87 | 3.94 | 1.97 | 78.26 | ||
7/8" | F08947 | 88,300 | 39.45 | 35.79 | 2.24 | 11.81 | 6.50 | 1.02 | 4.72 | 2.36 | 101.41 | ||
1" | F08948 | 123,300 | 44.33 | 39.96 | 2.24 | 11.81 | 6.50 | 1.26 | 5.51 | 2.76 | 141.10 | ||
1-1/4" | F08961 | 187,800 | 53.62 | 48.19 | 2.48 | 12.99 | 6.50 | 1.57 | 7.09 | 3.54 | 240.30 | ||
