TWN 1871

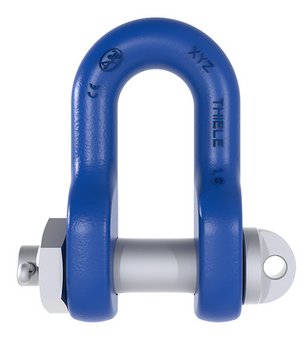

Bolt Shackles Type C with Nut and Roll Pin

The Grade 100 shackles type C TWN 1871 with bolt, nut and roll pin are used as end fittings in chain slings. The dimensions of the type C shackles comply with DIN 82101.

The manufacturing and testing requirements are based on DIN EN 1677-1, under consideration of Grade 100 working load limits.

Bolt Shackles Type C with Nut and Roll Pin

Properties

Trade Size	Article-No.	Working Load Limit [lbs]	Dimensions [inch]						Weight app. [lbs]	CAD STEP	CAD IGES
Trade Size	Article-No.	Working Load Limit [lbs]	d₁	d₂	d₄	b₁	b₂	h₁	Weight app. [lbs]	CAD STEP	CAD IGES
3/8"	F303100	8,800	0.59	1.26	0.63	0.83	1.85	1.93	0.99	Download	Download
1/2"	F303200	15,000	0.75	1.57	0.79	1.09	2.44	2.40	1.85	Download	Download
5/8"	F303300	22,600	0.91	1.89	0.94	1.30	2.95	2.87	3.28	Download	Download
7/8"	F303500	42,700	1.30	2.83	1.42	1.85	4.21	4.37	10.12	Download	Download
*On request
