Lifting Products Grade 100 Lifting Products Grade 100

TWN 1836

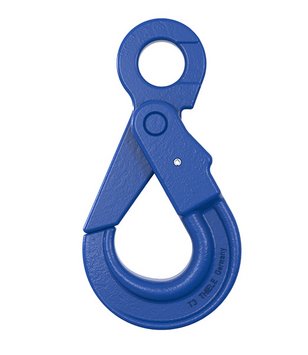

Eye Self-Locking Hooks

The Grade 100 eye self-locking hooks TWN 1836 are used to assemble chain slings and are also used in the construction industry. The round steel chains may be assembled with connecting links, e.g. XL-LOKs TWN 1820. When the hooks are under load, they lock automatically. They may only be reopened manually, when the hooks are not under load anymore. The manufacturing and testing requirements comply with DIN EN 1677-3 under consideration of Grade 100 working load limits.

Eye Self-Locking Hooks

Properties

Trade Size

Article-No.

Working
Load Limit


[lbs]

Dimensions

[inch]

Weight
app.


[lbs]

CAD


STEP

CAD


IGES

c

d1

d2

e

g

h

l

1/4"*

F092003

3,100

0.71

0.87

0.39

4.21

1.10

0.87

5.53

1.15

Download

Download

9/32"-5/16"*

F092103

5,700

0.91

0.94

0.45

5.24

1.30

0.98

6.65

1.94

Download

Download

3/8"*

F092303

8,800

1.06

1.26

0.51

6.57

1.77

1.34

8.50

3.59

Download

Download

1/2"*

F092403

15,000

1.34

1.54

0.63

8.07

2.05

1.57

10.67

7.05

Download

Download

5/8"*

F092503

22,600

1.28

1.57

0.63

8.23

2.11

1.59

10.63

6.44

Download

Download

3/4"*

F092603

35,300

1.69

1.93

0.91

10.31

2.52

2.09

13.31

13.96

Download

Download

7/8"*

F092703

42,700

1.50

1.97

0.81

10.00

2.44

1.99

13.03

12.83

Download

Download

*on request
