Lifting and Lashing Points

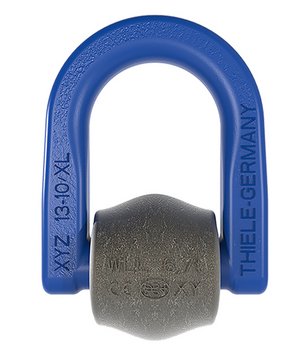

The weld-on COMPACT lifting points TWN 1882A with fixing spring are used for lifting and moving of loads.
The lifting points are predominantly welded on machine frames, steel constructions, trusses and housings. The compact design allows a small installation space.
The manufacturing and testing requirements are based on ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||||||||
a | b | c | d1 | d2 | e* | f | h | l | ||||||
1/4" | F352041A | 3,300 | 2.56 | 1.50 | 1.93 | 0.51 | 0.55 | 2.68 | 1.65 | 1.02 | 1.38 | 0.90 | ||
5/16" | F352051A | 5,500 | 2.99 | 1.77 | 1.97 | 0.59 | 0.59 | 2.83 | 1.73 | 1.06 | 1.65 | 1.26 | ||
3/8" | F352061A | 8,800 | 3.35 | 1.97 | 2.17 | 0.67 | 0.67 | 3.46 | 2.24 | 1.22 | 1.81 | 1.85 | ||
1/2" | F352071A | 15,000 | 4.57 | 2.68 | 3.03 | 0.91 | 0.91 | 4.84 | 3.15 | 1.73 | 2.48 | 4.83 | ||
5/8" | F352081A | 22,600 | 5.12 | 2.72 | 3.62 | 1.06 | 1.06 | 5.00 | 2.83 | 2.13 | 2.48 | 7.39 | ||
*Upright standing ring. | ||||||||||||||
