TWN 1490

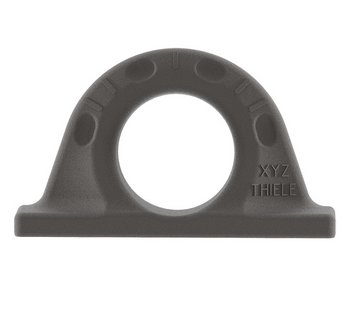

Lifting points THI-EYE, weld-on type

The weld-on type lifting points THI-EYE TWN 1490 are used for lifting, moving, and securing of loads, primarily to get welded onto earth-moving machines, shovels, grabs and traverses. The lifting points may be used with 100% WLL in all directions, are crack tested and feature angle indicators to optimize alignment during the rigging process.

The manufacturing and testing requirements are based on the DGUV testing principal GS-HM 35, ISO 8539 and DIN EN 1677-1.

Properties

Trade Size	Article-No.	Working Load Limit [lbs]	Dimensions [inch]						Weight app. [lbs]
Trade Size	Article-No.	Working Load Limit [lbs]	a	b	t	d	p	h	Weight app. [lbs]
1,6	F32305	3,500	1.18	3.94	0.63	1.38	1.65	2.28	0.88
3,2	F32300	7,100	1.61	5.39	0.75	1.97	2.36	3.15	2.20
5	F32301	11,000	2.01	6.77	1.02	2.36	2.87	3.90	4.63
10	F32302	22,000	2.76	8.98	1.46	3.15	3.86	5.24	11.46
20*	F32303	44,100	3.54	10.71	1.97	4.53	5.51	7.09	23.15
31,5*	F32304	72,300	4.25	12.60	2.44	5.12	6.30	8.19	40.79
*On request
