Hoist Chains

TWN 0062
Hoist Chains Type T

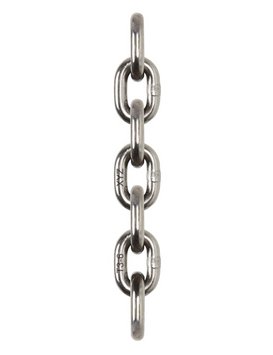

The hoist chains TWN 0062 (T-type) are used as load chains predominantly in manually operated hoists, e.g. in TM Chain Blocks and TM Lever Blocks. They are also used in motor-driven electric chain hoists that are used as maintenance hoists in wind turbines. The hoist chains are tempered, galvanized and comply with DIN EN 818-7.

Properties

Trade Size	Article-No. Execution		Nom. Size		Pitch		Width		Working Load Limit [t]	Weight app. [lbs/ft]	Measuring Length
Trade Size	Bright polished	Electro galvanized	d_n [mm]	Tol. ± [mm]	p_n [mm]	Tol. ± [mm]	w₁ [mm]	w₂ [mm]	Working Load Limit [t]	Weight app. [lbs/ft]	11 x p [mm]	Tol. ± [mm]
4 x 12	–	–	4.0	+0,20 / -0,20	12	+0,15 / -0,10	4.80	13.60	0.50	0.24	132.0	+0,40 / -0,20
4,2 x 12,2	–	–	4.2	+0,10 / -0,20	12	+0,15 / -0,10	4.80	13.70	0.50	0.26	134.2	+0,40 / -0,20
5 x 15	–	F09016	5.0	+0,20 / -0,20	15	+0,20 / -0,10	6.00	17.00	0.80	0.37	165.0	+0,50 / -0,30
5,3 x 15,2	–	–	5.3	+0,10 / -0,20	15	+0,20 / -0,10	5.90	16.90	0.80	0.42	167.2	+0,50 / -0,30
6 x 18	–	F09026	6.0	+0,20 / -0,20	18	+0,25 / -0,10	7.20	20.40	1.10	0.53	198.0	+0,60 / -0,30
7 x 21 ¹⁾	F09030	F09031	7.0	+0,10 / -0,28	21	+0,30 / -0,00	8.40	23.40	1.50	0.73	231.0	+0,70 / -0,00
7 x 22	–	F09036	7.0	+0,30 / -0,30	22	+0,30 / -0,15	8.40	23.80	1.50	0.71	242.0	+0,80 / -0,40
7,4 x 21,2	–	–	7.4	+0,10 / -0,30	21	+0,30 / -0,15	8.40	23.80	1.50	0.83	233.2	+1,70 / -0,70
8 x 24	–	F09046	8.0	+0,30 / -0,30	24	+0,30 / -0,15	10.20	27.20	2.00	0.95	264.0	+0,80 / -0,40
9 x 27 ¹⁾	F09050	F09051	9.0	+0,10 / -0,40	27	+0,25 / -0,10	10.80	30.40	2.50	1.20	297.0	+0,70 / -0,30
10 x 30	–	F09056	10.0	+0,40 / -0,40	30	+0,40 / -0,20	12.00	34.00	3.20	1.49	330.0	+1,00 / -0,50
11 x 31 ¹⁾	F09060	F09061	11.0	+0,30 / -0,40	31	+0,30 / -0,15	13.20	36.50	3.80	1.85	341.0	+0,90 / -0,30
13 x 36 ¹⁾	F09065	F09066	13.0	+0,10 / -0,50	36	+0,35 / -0,15	15.20	42.90	5.30	2.60	396.0	+1,10 / -0,20
16 x 45 ¹⁾	F09070	F09071	16.0	+0,30 / -0,60	45	+0,45 / -0,25	18.20	52.80	8.00	3.91	495.0	+1,40 / -0,50
18 x 50	F09075	F09076	18.0	+0,90 / -0,90	50	+0,65 / -0,35	21.60	61.20	10.00	4.97	550.0	+1,75 / -0,85
22 x 66 ¹⁾	F09080	F09081	22.0	+0,80 / -1,10	66	+0,65 / -0,35	27.00	75.00	15.00	7.19	726.0	+2,00 / -0,70
31,5 x 90 ¹⁾²⁾	F09085	F09086	31.5	+1,60 / -1,60	90	+1,20 / -0,60	37.80	107.10	31.50	15.06	990.0	+3,20 / -1,60
1) Limited tolerances. Also complies with RAG 726 300. 2) Similar to EN 818-7
